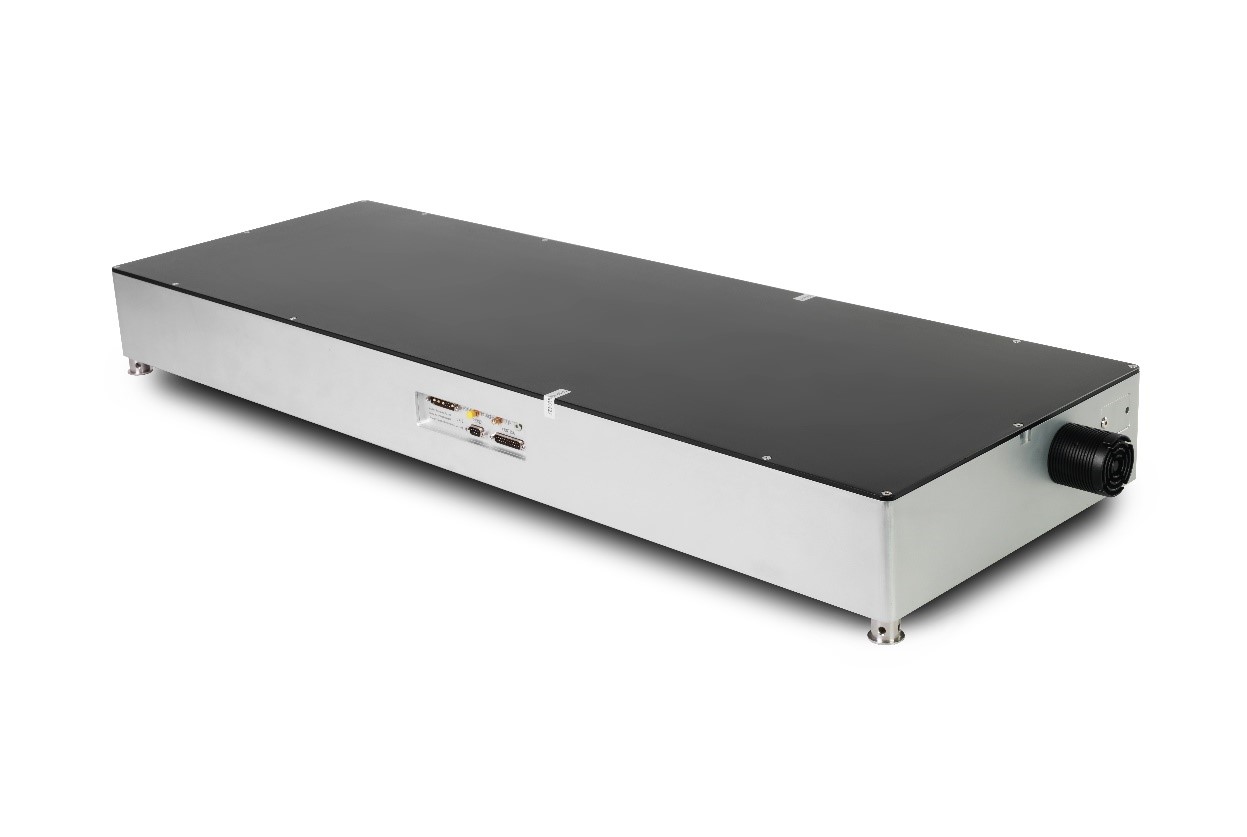

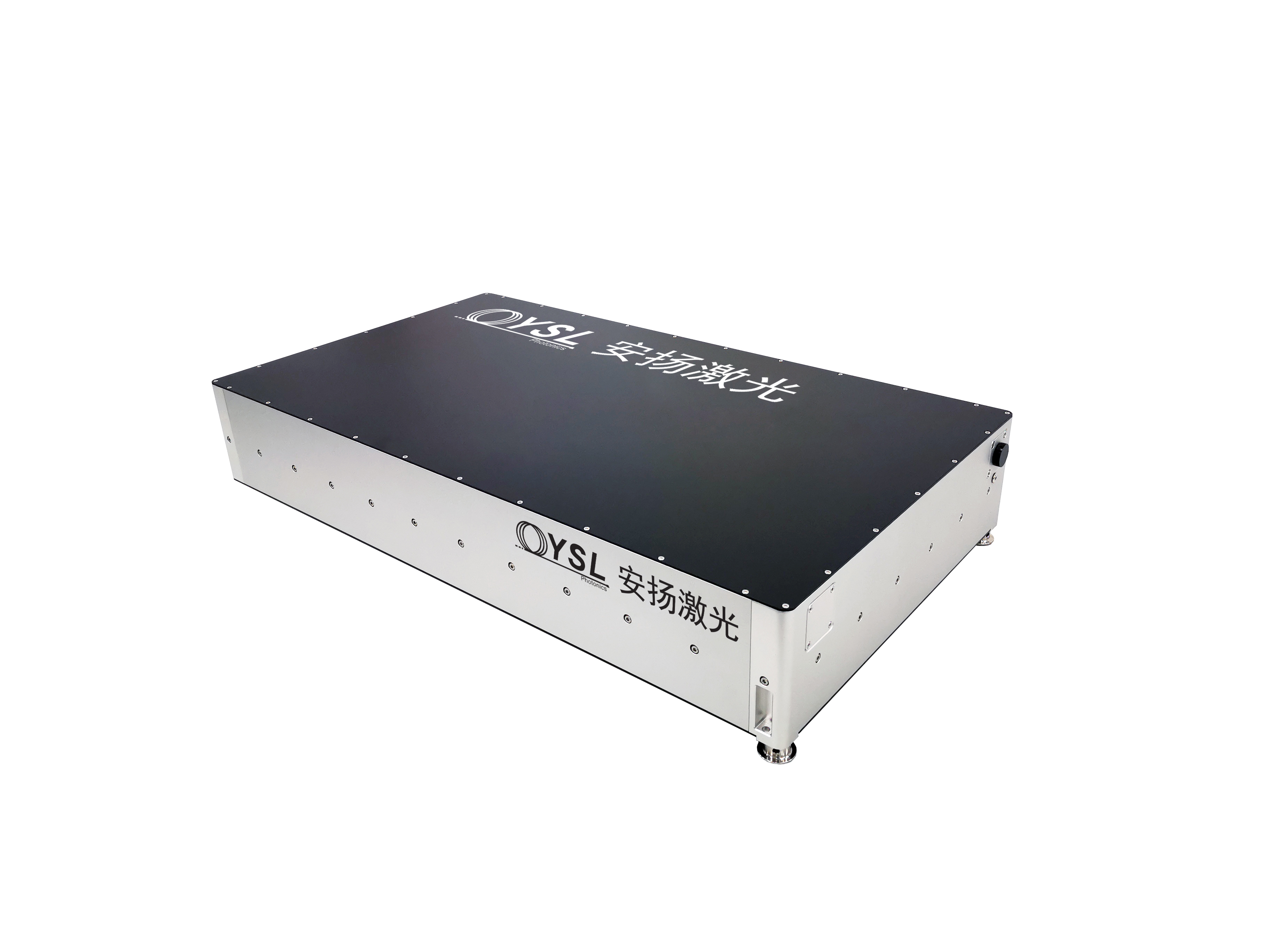

YSL Photonics’ PicoYL-100 has a tunable pulse duration from 50 ps to 800ps, repetition rates from 25 kHz up to 5 MHz and over 100W average power. The short pulse duration, high repetition rates combined with over 1MW peak power open up a variety of micromachining applications such as PERC solar cell dicing, glass drilling, sapphire drilling, Li-Ion battery foil cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.

Applications：

●  PERC Solar Cell Dicing

●  Lion Ion Battery Foil Cutting

●  Glass Drilling

●  Silicon or SiC Dicing

●  Metal Marking

●  Chrome Vanadium Texturing

●  Micromaching of Transparent materials

Features：

●  Average Power 100W

●  Pulse Duration 50-800ps

●  Peak Power 1MW

●  Repetition Rate 25kHz-5MHz

●  Pulse Energy 300uJ@800ps

●  M²<1.3

●  Burst Mode Function

Data Sheet:

PicoYL-100 EN.pdf
