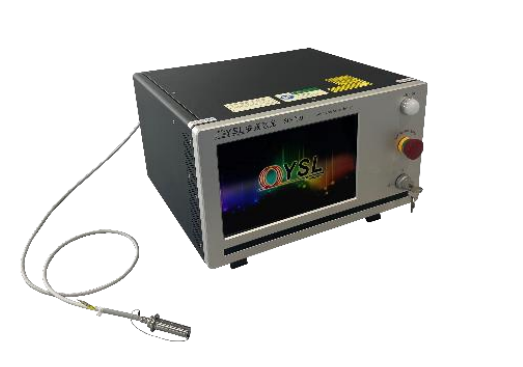

YSL Photonics' SC-PRO8 is the latest high power supercontinuum source with variable repetition rate from 10kHz to 200MHz. It delivers a wide spectral output ranging from 430nm to 2400nm with 8W total power (10-20W optional). It has the unique feature of 1MHz-80MHz external triggerable range which could be very useful for locking to the mode-locked laser for pump-probe application. SC-PRO8 offers >1µJ pulse energy (@1MHz), making it the ideal source for super resolution microscopy. The 10kHz to 200MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy, nanophotonics and etc.
Models and options:
SC-PRO8
• Total power：>8W
• Wavelength：430nm-2400nm
• Pulse Duration：~100ps
SC-PRO8-M
• Total power：>7W@80MHz
• Wavelength：410nm-2400nm
• Pulse Duration：~6ps
SC-PRO8-HP
• Total power：>7W
• Wavelength：430nm~2400nm
• Pulse Duration：1/2/4/8ns Optional
Features:
• Wavelength：430nm-2400nm
• Internal Repetition Rate：10kHz-200MHz
• Pulse Energy：>1μJ
• Single-Mode Output
• Size：440mm*390mm*242mm
Applications:
• OCT
• Fluorescence Spectroscopy and Microscopy
• Nanophotonics
• Super-Resolution Imaging
• Photocurrent microscopy
