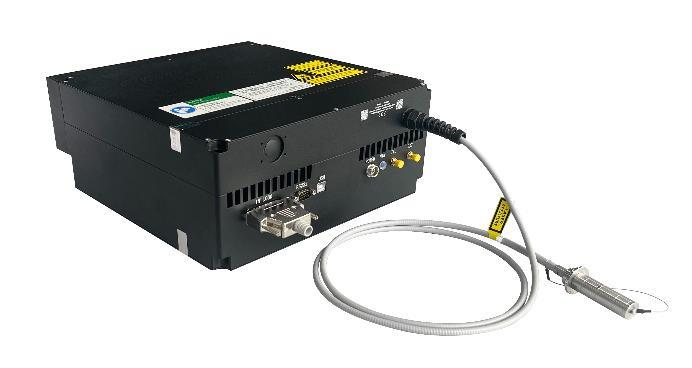

YSL Photonics’ SC-OEM is the latest product designed with the compact footprint for the demanding medical and industry application. The SC-OEM, with single-mode fiber output, delivers a wide spectral output ranging from 430nm to 2400nm with up to 10W total power. The SC-OEM not only maintains the traditional supercontinuum light source excellent performance, but also sets aside DB25, RS232, NIM trigger, Pulse on Demand (POD) and many other control interfaces. The wide spectrum combined with laser beam quality makes it an ideal source for replacing traditional broadband source like lamp, LED, SLED or any number of laser lines in the system.
Applications:
• Semiconductor Inspection & Metrology
• Industrial Sorting/ Machine Vision
• Medical Instrumentation
• Flow Cytometry
• Optical Coherence Tomography
Features:
• Wavelength 430nm-2400nm
• Total Power >10W
• Visible Power >1000mW
• Repetition Rate 0.01-200MHz
• Optional External TTL Triggerable
Data Sheet：
